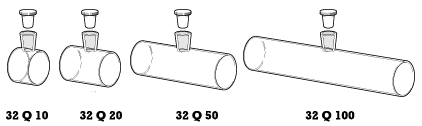

Starna® - Cylindrical Cells, Medium path length

Starna Type 32 cells have path lengths of 1, 2, 5, 10, 20, 50 and 100 mm with an internal diameter of 19mm and an external diameter of 22mm. Each cell has a single stopper which is made of PTFE. Cylindrical Cells, Medium path length
Window material Special Optical Glass, usable range: 334 to 2500nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
32/SOG/1 1 22 3.5 19 10 0.280 1 2
32/SOG/2 2 22 4.5 19 20 0.560 1 2
32/SOG/5 5 22 7.5 19 10 1.400 1 2
32/SOG/10 10 22 12.5 19 20 2.800 1 2
32/SOG/20 20 22 22.5 19 10 5.600 1 2
32/SOG/50 50 22 52.5 19 20 14.100 1 2
32/SOG/100 100 22 102.5 19 10 28.200 1 2

Window material Borofloat, usable range: 325 to 2500nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
32/PX/1 1 22 3.5 19 10 0.280 1 2
32/PX/2 2 22 4.5 19 20 0.560 1 2
32/PX/5 5 22 7.5 19 10 1.400 1 2
32/PX/10 10 22 12.5 19 20 2.800 1 2
32/PX/20 20 22 22.5 19 10 5.600 1 2
32/PX/50 50 22 52.5 19 20 14.100 1 2
32/PX/100 100 22 102.5 19 10 28.200 1 2

Window material Spectrosil Quartz, usable range: 190 to 2700nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
32/Q/1 1 22 3.5 19 10 0.280 1 2
32/Q/2 2 22 4.5 19 20 0.560 1 2
32/Q/5 5 22 7.5 19 10 1.400 1 2
32/Q/10 10 22 12.5 19 20 2.800 1 2
32/Q/20 20 22 22.5 19 10 5.600 1 2
32/Q/50 50 22 52.5 19 20 14.100 1 2
32/Q/100 100 22 102.5 19 10 28.200 1 2

Window material Infrasil Quartz, usable range: 220 to 3800nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
32/I/1 1 22 3.5 19 10 0.280 1 2
32/I/2 2 22 4.5 19 20 0.560 1 2
32/I/5 5 22 7.5 19 10 1.400 1 2
32/I/10 10 22 12.5 19 20 2.800 1 2
32/I/20 20 22 22.5 19 10 5.600 1 2
32/I/50 50 22 52.5 19 20 14.100 1 2
32/I/100 100 22 102.5 19 10 28.200 1 2

Window material Suprasil® Quartz, usable range: 190 to 3500nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
32/SX/1 1 22 3.5 19 10 0.280 1 2
32/SX/2 2 22 4.5 19 20 0.560 1 2
32/SX/5 5 22 7.5 19 10 1.400 1 2
32/SX/10 10 22 12.5 19 20 2.800 1 2
32/SX/20 20 22 22.5 19 10 5.600 1 2
32/SX/50 50 22 52.5 19 20 14.100 1 2
32/SX/100 100 22 102.5 19 10 28.200 1 2
