Starna® - Cylindrical Cells, Large Diameter

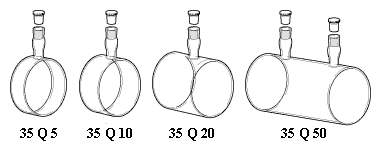

Starna Type 35 cells have path lengths of 2, 5, 10, 20 and 50mm with an internal diameter of 47 mm and an external diameter of 50 mm. Each cell has a single stopper which is made of PTFE. These cells are designed for use where a large aperture is required.




Cylindrical Cells, Large Diameter
Window material Special Optical Glass, usable range: 320 to 2500nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
35/SOG/2 2 50 4.5 47 2 3.40 1 2
35/SOG/5 5 50 7.5 47 5 8.50 1 2
35/SOG/10 10 50 12.5 47 10 17.00 1 2
35/SOG/20 20 50 22.5 47 20 35.00 1 2
35/SOG/50 50 50 52.5 47 50 86.00 1 2

Window material Borofloat, usable range: 325 to 2500nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
35/PX/2 2 50 4.5 47 2 3.40 1 2
35/PX/5 5 50 7.5 47 5 8.50 1 2
35/PX/10 10 50 12.5 47 10 17.00 1 2
35/PX/20 20 50 22.5 47 20 35.00 1 2
35/PX/50 50 50 52.5 47 50 86.00 1 2

Window material Spectrosil Quartz usable range: 190 to 2700nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
35/Q/2 2 50 4.5 47 2 3.40 1 2
35/Q/5 5 50 7.5 47 5 8.50 1 2
35/Q/10 10 50 12.5 47 10 17.00 1 2
35/Q/20 20 50 22.5 47 20 35.00 1 2
35/Q/50 50 50 52.5 47 50 86.00 1 2

Window material Infrasil usable range: 220 to 3800nm
Starna Catalogue Path Length Ext Diameter Ext Length Int Width Int Length Nom Vol Number of Polished
Number mm mm mm mm mm ml Stoppers Windows
35/I/2 2 50 4.5 47 2 3.40 1 2
35/I/5 5 50 7.5 47 5 8.50 1 2
35/I/10 10 50 12.5 47 10 17.00 1 2
35/I/20 20 50 22.5 47 20 35.00 1 2
35/I/50 50 50 52.5 47 50 86.00 1 2
