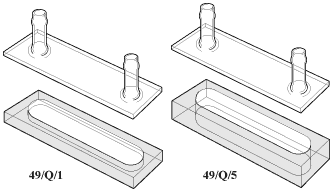

Starna® - Flow Cells, Short part length Demountable

2 Clear windows:
Path lengths 0.01, 0.1, 0.2, 0.5, 1, 2, 5 mm
Tubilations for push-on flexible tubeing
for use with type CH/2049 cell holder
Flow Cells, Short part length Demountable

Window material Spectrosil Quartz or equivalent, usable range: 170 to 2700nm.
Starna Catalogue Path Length Ext Width Ext Length Ext Height Sample Chamber Width Sample Chamber Length Sample Chamber Height Nom Vol
Number mm mm mm mm mm mm mm ml
49 0.01 12.5 2.6 45 8 0.01 11 0.003
49 0.1 12.5 2.6 45 8 0.1 11 0.030
49 0.2 12.5 2.7 45 8 0.2 11 0.060
49 0.5 12.5 3.0 45 8 0.5 11 0.150
49 1 12.5 3.5 45 8 1 11 0.300
49 2 12.5 4.5 45 8 2 11 0.600
49 5 12.5 7.5 45 8 5 11 1.560

Window material Special Optical Glass, usable range: 320 to 2500nm
Starna Catalogue Path Length Ext Width Ext Length Ext Height Sample Chamber Width Sample Chamber Length Sample Chamber Height Nom Vol
Number mm mm mm mm mm mm mm ml
49 1 12.5 3.5 45 8 1 11 0.300
49 2 12.5 4.5 45 8 2 11 0.600
49 5 12.5 7.5 45 8 5 11 1.560
